Cadillac Height: Technical Guide Before Buying
Cadillac Height: Technical Guide Before Buying
The three heights you need to know are: the Cadillac bed measures between 56 and 65 cm, the full frame reaches approximately 204 to 215 cm depending on the model and installed accessories, and the industry rule of thumb recommends at least 3 meters of clear ceiling height to work the full repertoire without restrictions.
These three values determine whether your room can accommodate a full Cadillac or if you need to consider a conversion.
- Bed height: 56–65 cm, the range that determines ergonomic access to and exit from the apparatus.
- Frame height: 204–215 cm, variable depending on manufacturer and mounted hardware.
- Recommended clear height: ≥3 m for aerial work and unrestricted instructor assistance.
Pro tip: Before requesting a quote, measure the ceiling in at least three different points of the area where you will install the apparatus. Beams, air conditioning ducts, or pendant lights reduce the actual available height even if the floor plan indicates a different figure.
In summary:
- If the ceiling height is less than 3 meters, it is only advisable to install a conversion on a reformer or a limited configuration, restricting aerial and high suspension exercises.
- The Cadillac bed height ranges between 56 and 65 centimeters, depending on the model and design, and affects ergonomics and accessibility for different users.
- The total frame measurement reaches between 204 and 215 centimeters, and it is crucial to confirm this dimension in the installation space to avoid incompatibilities.
- Accessories, such as bars and supports, add centimeters to the equipment's height and must be accounted for when measuring the available space.
- Before purchasing, it is essential to check doors, hallways, and the ceiling at various points in the premises to ensure the equipment can enter and be installed without obstacles.
Table of Contents
- Key Cadillac Measurements: Bed, Frame, and Footprint to Calculate Cadillac Height
- How much clear height does a Cadillac truly need?
- Which accessories add centimeters to the total height?
- Installation Checklist: Checks Before the Equipment Arrives
- Why confirming the height before buying saves you real money
- How to order an Infinity Cadillac that fits your room
- Key Points
- Sources
Key Cadillac Measurements: Bed, Frame, and Footprint to Calculate Cadillac Height
Bed height is not a minor detail. A full Cadillac typically measures between 206 and 210 cm in total height, with the bed around 63 cm, a figure that influences how much effort the practitioner exerts when getting on and off the apparatus, and how much the instructor must bend during trapeze or suspension exercises. A bed that is too low forces uncomfortable postures for taller clients; a bed at the higher end of the range can complicate access for people with reduced mobility.
The frame does not always measure the same.
- Full Cadillac: The traditional model, with the highest total height in the group (204 to 215 cm) and the most complete repertoire.
- Reformer conversion: Reduces the effective height because it is mounted on an existing base, but limits some suspension exercises that require full vertical travel.
- Combo with added tower: An intermediate position, designed for studios with space restrictions that still want to perform basic tower exercises.
The footprint also matters for room layout. A full Cadillac is approximately 208 cm long by 65 cm wide, not including circulation space around it. Before confirming any purchase, verify these three physical points of the premises: the width of the access door, the width of the hallway through which the disassembled equipment will enter, and the exact installation point with a tape measure, not a visual estimate.
| Dimension | Typical Range |
|---|---|
| Bed Height | 56–65 cm |
| Frame Height (full) | 204–215 cm |
| Footprint Length (full) | ~208 cm |
| Footprint Width (full) | ~65 cm |
Asking the supplier for these exact figures, instead of assuming a generic average, avoids surprises when the equipment arrives at the studio.
How much clear height does a Cadillac truly need?
The nominal height of the apparatus and the operational free height are two different things, and confusing them is the most common mistake when planning a room. Nominal height is just the physical frame of the Cadillac. Operational free height adds the space the instructor needs to stand on the bed, adjust springs from above, or assist a practitioner in a suspension position with arms extended.
That's why the industry's practical recommendation sets a minimum of 3 meters of clear height when the studio wants to offer the full repertoire. In spaces where the ceiling is around 2.5 m, several suspension and aerial work exercises are excluded from the programming, no matter how good the equipment is.
- If your ceiling measures between 2.7 and 3 m, you can still install a full Cadillac, but check with the supplier which high suspension exercises will be limited.
- If your ceiling is below 2.5 m, a reformer conversion is usually the most viable option, although it sacrifices part of the tower repertoire.
- If your ceiling exceeds 3 m, you have room for hanging accessories, decorative lighting, and aerial work without restrictions.
Installing a Cadillac in a space with insufficient height not only limits classes. It also increases the risk of accidental bumps with the upper bars during quick maneuvers, something no studio wants to deal with while clients are in motion.

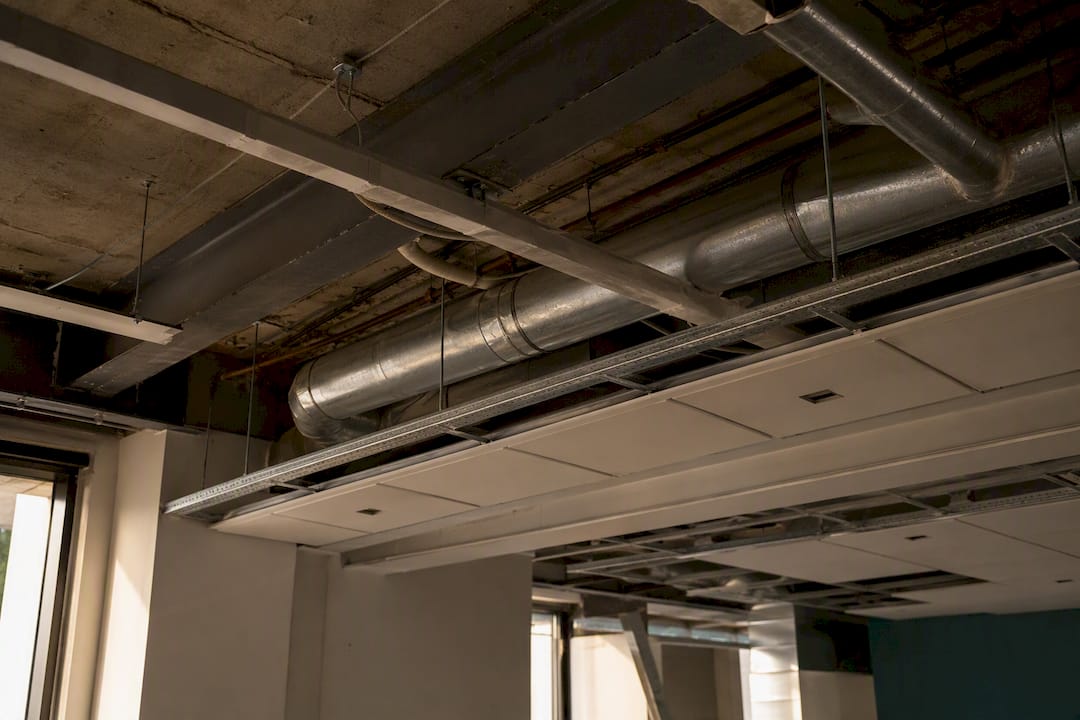

Professional tip: ask the architect or the contractor for the actual clear height, not the slab height. False ceilings, structural beams, and ducts can reduce the height by 15 to 30 cm without appearing on the original plan.
What accessories add centimeters to the total height
The number that appears in the Cadillac's technical specifications almost never includes mounted accessories, and that's where many studios get a surprise during installation. Hardware and add-ons contribute to the actual height, and that difference can turn a marginal room into an impossible installation.
- Slider knobs: protrude from the top of the frame and add a few centimeters depending on the model.
- Trapeze bars and push-through bar: in the resting position, they raise the highest point of the apparatus.
- Upper spring anchors: the fastening system may protrude above the base frame.
- Supports for optional accessories: ladders, extensions, or additional arms add variable height depending on the manufacturer.
That's why it's always advisable to ask for the measurement with accessories installed, not just the nominal height of the empty frame. Document that figure in writing and compare it with the actual clear height of your premises before confirming the order. A five-minute technical call with the supplier, confirming the total height with mounted hardware, avoids a costly return weeks later.
Installation Checklist: Checks before the equipment arrives
Confirming the height for a Cadillac on paper is just the first step. Real installation requires physical checks that no catalog can replace.
- Measure complete access. Verify the width of the main door, the interior hallway, and, if applicable, the elevator through which the disassembled or partially assembled equipment will pass.

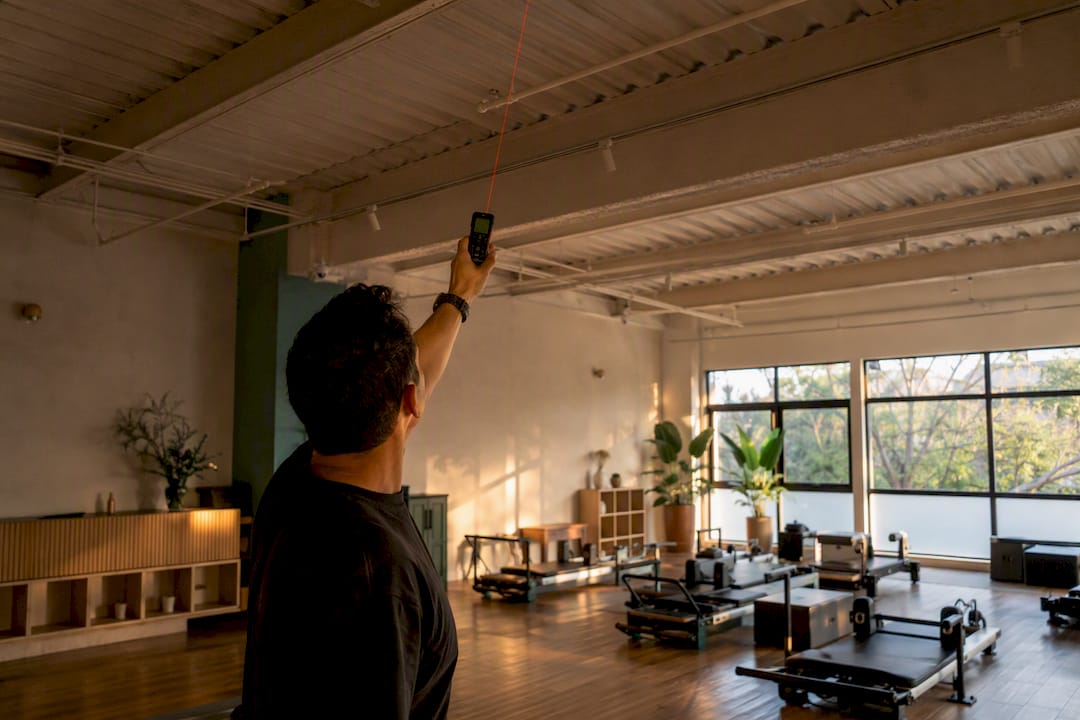

- Mark the ceiling at several points. Don't just measure the center of the room: check the corners and the exact area where the Cadillac will be located, because beams and ducts can irregularly reduce the height.
- Verify the floor. Confirm that it supports the weight of the equipment and assess whether you need additional anchors depending on the type of flooring (wood, concrete, floating surface).
- Simulate final assembly. Once installed, measure again with accessories in place and have an instructor simulate the most demanding suspension maneuvers to validate the spotting space.
- Request photographic documentation from the supplier. Ask for photos of the assembled equipment, with visible measurements, before it leaves the warehouse.
This process significantly reduces the risk of incompatibility, which according to industry specialists is one of the most common causes of returns and installation delays. Sharing exact photos and measurements of the premises with the supplier before shipment speeds up technical confirmation and prevents equipment from arriving at a space that cannot accommodate it.

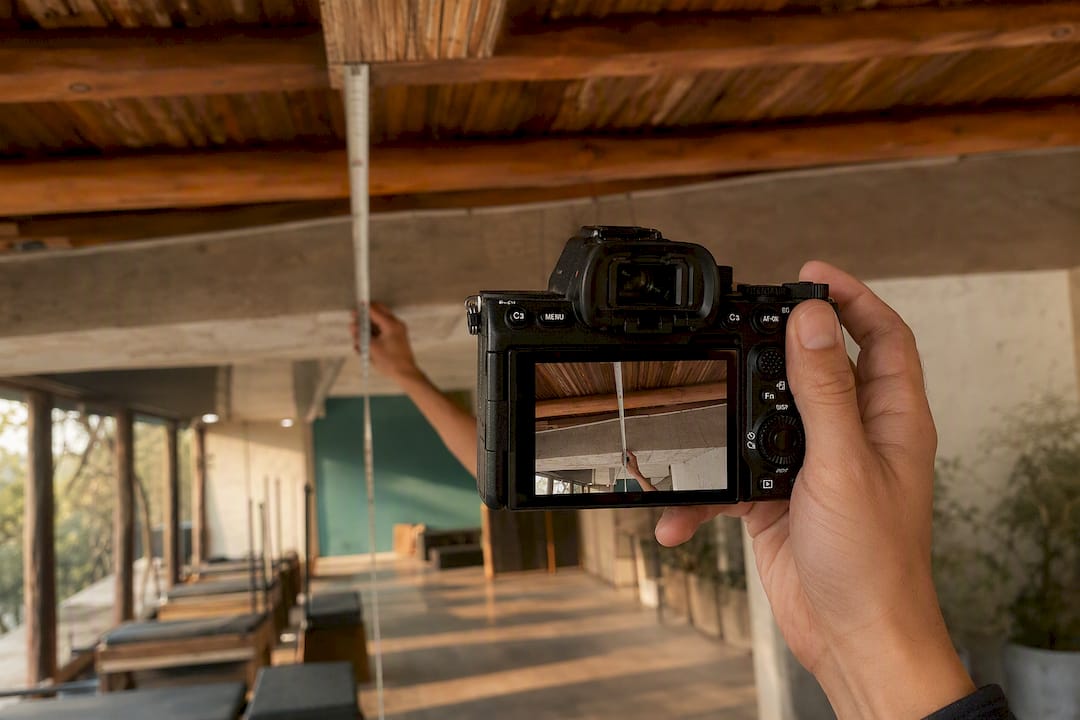

Professional tip: keep a dated photographic record of each measurement. If a dispute arises with the carrier or manufacturer over damages during installation, that prior documentation supports you.
Why confirming the height before buying saves you real money
The elevated height of the Cadillac is not a design whim. It allows the instructor to supervise the practitioner from a comfortable position and reduces lumbar strain during assists, something that equipment specialists document as a concrete ergonomic benefit, not just an aesthetic one. Sacrificing that height to fit a low ceiling comes at a cost paid in classes, not on the purchase invoice.
Pilatesdemexico distributes the Cadillac Infinity by Metalife, built with certified Lyptus® FAS wood and stainless steel hardware, designed to withstand years of daily classes without losing structural stability. For studios that are torn between a full Cadillac and a conversion, the Pilatesdemexico consulting team reviews floor plans, suggests equipment distribution, and assembles packages tailored to the actual available space, not just the catalog. Before requesting a quote, have your floor plan, the clear ceiling height measured at several points, and the dimensions of doors and hallways handy: this information speeds up the supplier's technical response.
How to order a Cadillac Infinity that fits your studio
With heights confirmed and the installation checklist resolved, the next step is to translate those measurements into a real quote. Pilatesdemexico works with Metalife's Cadillac Infinity line, the leading reformer brand in South America and now available in Mexico, manufactured with materials designed for over 200 exercises and years of daily use in professional studios.
To receive an accurate quote, share with the Pilatesdemexico team your clear ceiling height measured at several points, the width of your access points, and the type of flooring in the room. With this data, the consultancy can recommend whether a full Cadillac, a version with an integrated tower, or a complete package to equip the room combining reformers and Cadillac in a single order is suitable. If budget is a concern, Pilatesdemexico offers direct financing so that opening or expanding your studio doesn't depend on paying for all equipment upfront. Request a measurement of your space and a quote adjusted to the actual dimensions of your studio today.
Key Points
Confirming bed height, frame, and ceiling before purchasing prevents returns, protects the full repertoire, and ensures safety in aerial maneuvers.
| Point | Details |
|---|---|
| Reference bed height | Use the 56 to 65 cm range to assess ergonomic access to and exit from the apparatus. |
| Variable frame height | A full Cadillac measures 204 to 215 cm; conversions and combos reduce this figure. |
| Minimum recommended ceiling | Look for at least 3 meters of clear height to work the complete aerial repertoire. |
| Accessories add centimeters | Always ask for the total height with knobs, bars, and anchors already installed. |
| Measure before ordering | Check doors, hallways, and ceiling at several points before confirming the order. |
| Option supported by Pilatesdemexico | The Cadillac Infinity by Metalife combines certified materials with space consulting and direct financing. |
